If you’re restoring or troubleshooting a 1975 Datsun 280Z, this is the wiring diagram you need.
It’s a large 11x17 inch print, full color, and super easy to read.
Published by Prospero’s Garage, it’s brand new and comes on paper.
![1+] Wiring Diagram For Datsun 510, Cause 6 Dat-Projects Weren't Enough, 510 2](https://scheme360.net/pics/ad5b52a1-7452-4436-939f-6354cd6d7780_83_Datsun_280ZX_2_1.jpg "1+] Wiring Diagram For Datsun 510, Cause 6 Dat-Projects Weren't Enough, 510 2")

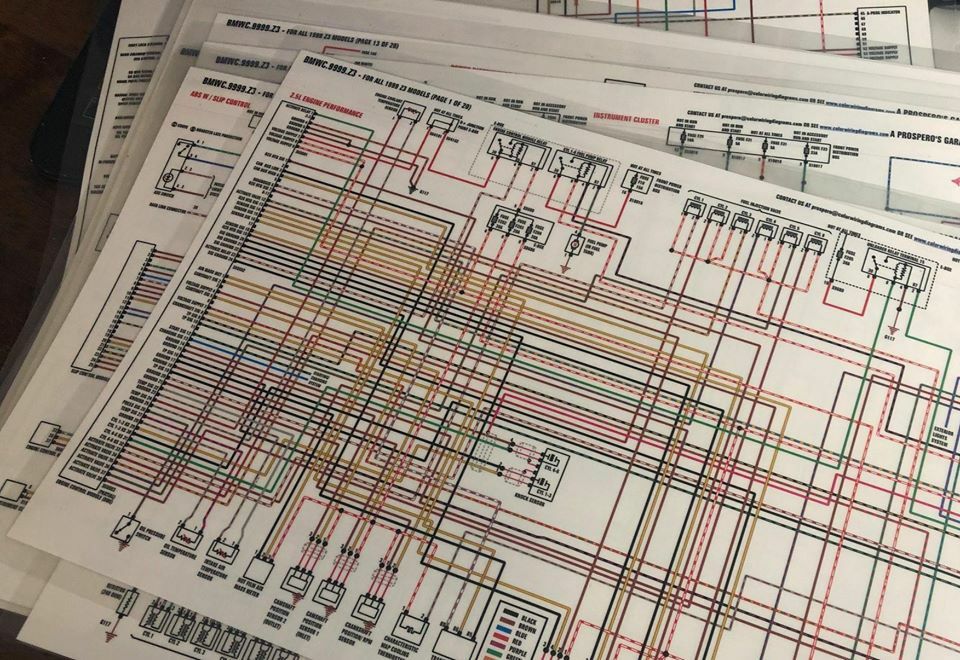

No more squinting at blurry black-and-white scans—this one’s color-coded so you can trace circuits quickly.
Made in the USA, it’s a must-have for any Z car enthusiast’s garage.
